| P5 Outdoor Module Specs | ||
| 5 | MM | pixel pitch |
| 160 x 320 | MM | Module dimensions |
| 32 x 64 = 2048 | DOTS | Display resolution/panel |
| 2727 SMD -1R-1G-1B | – | LED Package |
| NationSatr | – | LED brand |
| 1/8 scan | – | Driving method |
| Chipone | – | IC Brand driver |
| 40000 | Dot/M2 | pixel density |
| HUB75 | – | Module port |
| copper wire | – | Chip LED wire |
| 5 | vdc | Module working voltage |

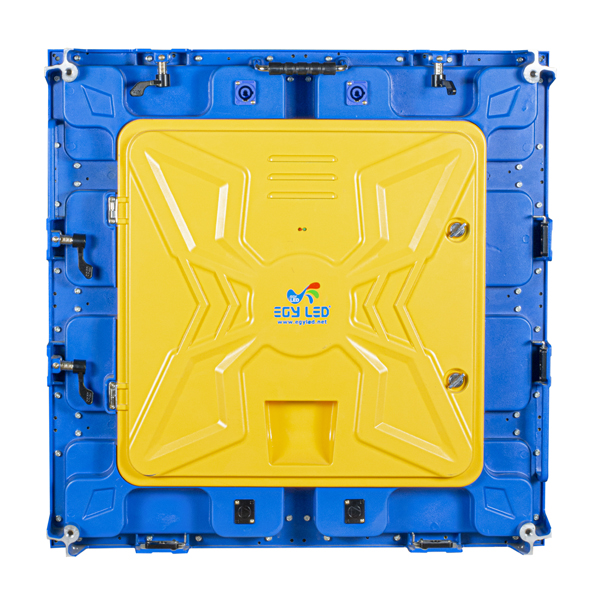

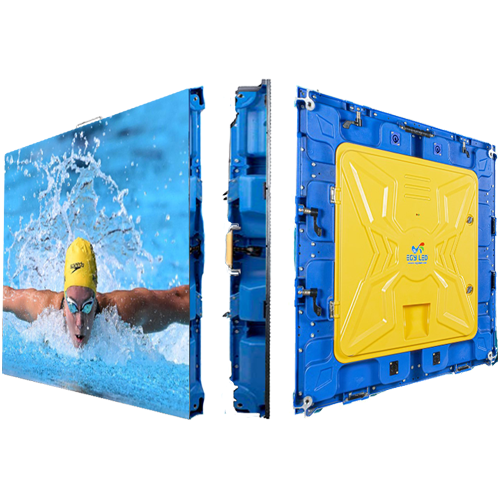

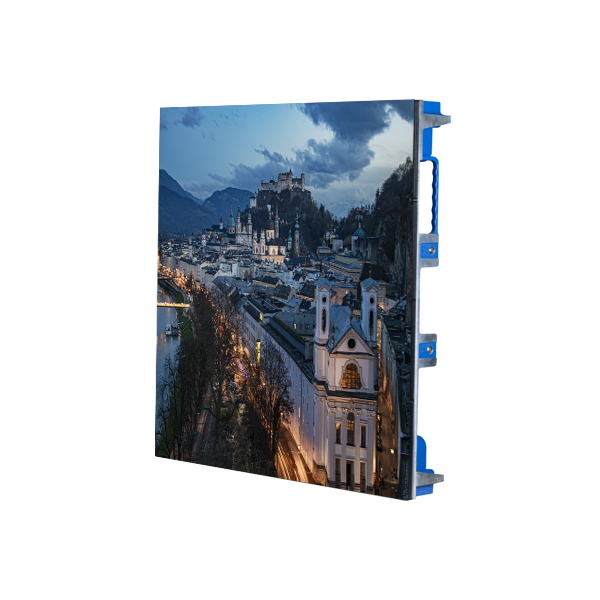

| P5 Outdoor Cabinet Specs | ||
| 640*640 | MM | Cabinet dimensions |
| 128 x 128 = 16384 | DOTS | Display resolution/Cabinet |
| >5 | M | Best viewing distance |
| 160 / 140 | Deg. | Viewing angle |
| 550 | W/M2 | AVG. consumption |
| 800 | W/M2 | MAX consumption |
| AC 46- 54HZ 220V±15% | VAC | working voltage |
| >60 | HZ | Frame Frequency |
| 1920 – 3840 Hz | HZ | Refreshfrequency |
| up to 6500 nits | CD/ M2 | Equilibrium brightness |
| 97% | – | Brightness uniformity |
| 100 levels | – | Brightness adjustment |
| – 10~60 | C | Working environment temperature |
| 10% – 90% | RH | Working environment humidity |
| 8500K – 11500K | – | color temperature |
| 4096 – 65536 grade | – | Gray calibration |
| 12bit – 16bit | – | Color Depth |
| 97% | – | color uniformity |
| PC nonlinearity card- DVI- HDMI- SDI- VGA- CVBS- etc. thru. a video converter | – | input signal |
| Color light – Linsn – HD etc. | – | control system |
| synchronous and asynchronous control | – | Control Mode |
| >5000 | HOURS | Mean free error time |
| 100000 | HOURS | Life |
| >48 | HOURS | Continuous OOC Point |
| IP65 | – | Protection Level |
| <0.0001 | – | Lamp failure frequency |
| Die-casting Aluminum | – | cabinet material |
| 12.5 | kilo. kilo | Cabinet weight approximate |
| rear service | – | maintenance method |
